The Latest High-tech Sensing Improving Worker Safety
Manufacturing workers suffer injuries due to contact with objects, environmental exposure, and overexertion. Connected worker platforms seek to drive safety incidents to zero.
The Exponential Decline in Work Related Injuries
Worker safety has come a long since the turn of the 20th century through a variety of technological and regulatory improvements. As late as 1932, construction workers can be seen eating lunch 800 feet above the ground while unharnessed atop a steel beam. Thankfully, in most nations that lackadaisical approach to safety would not be tolerated today. The incident rate of work related injuries within private industry has continued to decline across the United States from 11 cases per 100 workers in 1970 to about 3 cases per 100 workers in 2020. In manufacturing, where more workplace hazards are present, the rate remains about 30-50% higher but has declined over time in a similar manner like the rest of private industry.
US private industry work related injury cases have reduced significantly over the last fifty years. Credit: National Safety Council
The Canary in the Coal Mine

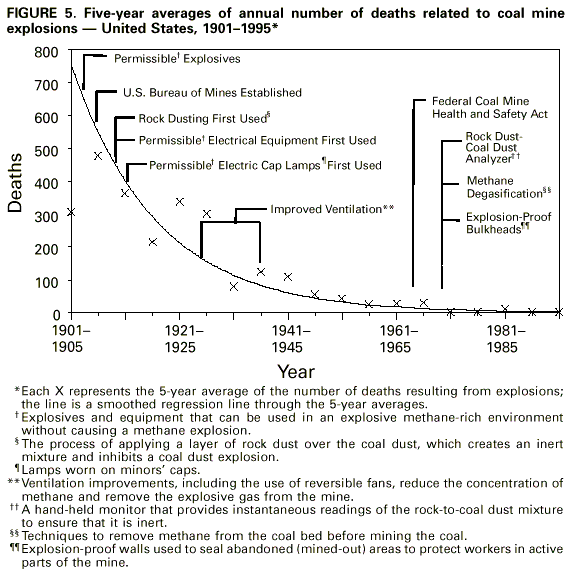

The Petroleum and Coal sector is one of the best examples of the exponential reduction in worker deaths over the last century. Mines are among the most dangerous workplaces in the world with them being prone to uncontrolled explosion, flooding, and poisoning. In the United States, a long series of regulations have restricted the permissible equipment allowed in mines and required constant monitoring of hazardous gasses to better alert miners of impending danger. Also, rather than relying on canaries showing indications of discomfort, modern infrared sensors now continuously sample the environment for elevated levels of toxins. The figure below from the Centers for Disease Control shows the enactment of these regulations overlaid on a fitted curve of annual deaths related to coal mine explosions.
The exponential reduction in injury incidence appears to hold true across countries and sector. China, the world’s largest coal producer, has experienced similar declines in coal mining worker deaths although it is unclear as to why. In other industrial sectors such as poultry processing where the rates of incidence declined 82% from 1994 to 2016.
What are the most common injuries in manufacturing?
In 2020, contact with objects and equipment, exposure to harmful substances, overexertion, falls, slips, and trips, and being struck by an object are the top five most common injuries in manufacturing. These injuries primarily occur in active production, while transporting and moving material, and during installation or maintenance of machinery. The injuries affect all parts of the body with the upper extremities, body systems and hands being the most frequent.
To further reduce these types of injuries additional sensing technology is needed to combat disorientation and collision. Lessons from the coal industry during the 20th century show if we can sense and monitor conditions we can proactively alert or avoid doing something very risky altogether. Whether it is sensing a physiological signal to assess overexertion or machine vision to avoid striking or colliding with unintended objects a number of companies continue to develop technology to reduce injuries and fatalities to zero.
Which companies are focusing on worker safety in manufacturing?
Guardhat
One of Fast Company’s most innovative manufacturing companies in 2022, Guardhat creates an integrated hardware and software platform for all things connected worker. In their words, “because industrial operations rely on people, the Guardhat Platform was built to create the IIoP - the Industrial Internet of People.” They also develop a range of wearable devices from their flagship smart hardhat to small form factor body-worn devices with ruggedized design to provide location tracking and core safety features such as “SOS, fall detection, man-down, and proximity detection.”
StrongArm Technologies
StrongArm’s SafeWork System provides companies a single source of truth, intelligent reporting, and industry benchmarking for “workplace risk management and proactive safety interventions.” Their FUSE-line of IoT wearable sensors reduce the risk of ergonomic or musculoskeletal injuries due to repetitive movements like bending, lifting and twisting through auditory, haptic and visual alerts. They tie together all the worker safety data into a platform that can “proactively predict problem areas and behavioral trends within an organization” while reducing insurance costs.
Everguard
Everguard’s Sentri360® platform, “connects technologies in computer vision, wearables, and sensor fusion to improve worker health and safety.” It “ties together disparate industrial technologies like edge servers, real-time location services (RTLS), computer vision (CV), lidar/radar, and wearables, allowing them to interact in ways not possible independently.” Its proprietary sensor fusion approach and AI is what separates itself from other workplace safety platforms.
New Factory Innovations Pose More Safety Challenges
As innovative companies seek to solve the workplace safety problem, other innovations are posing new hazards. Autonomous mobile robots reduce the need to lift and move materials and can be sent into hazardous environments but create new collision opportunities while their safety guidelines are still catching up. Collaborative robots are placed in close vicinity human workers and require close study of their failure modes to avoid errant contact. Ultimately, new technologies should continue to improve the safety of manufacturing because at the end of the day “a safe workplace is an efficient one.”
